• Durabed, pickup bed
• Air filter, high-capacity
• Air filtration monitoring
• Transfer case, two-speed active electronic Autotrac with push button control
• Differential, heavy-duty locking rear
• Four wheel drive
• Advanced Trailering System includes checklist, trailer maintenance reminders, trailer security alerts, trailer mileage, tow/haul reminder, trailer electrical diagnostics and Trailer Tire Pressure Monitor System module
• Trailer brake controller, integrated
• Frame, fully-boxed, hydroformed front section and a fully-boxed stamped rear section
• LPO, Chrome recovery hooks (dealer-installed)
• Suspension Package
• Steering, Digital Variable Steering Assist this system automatically adjusts steering based on speed, road conditions, and other inputs to reduce driver effort and fatigue
• Brakes, 4-wheel antilock, 4-wheel disc with DURALIFE rotors
• Brake lining wear indicator

• Wheels, 20" (50.8 cm) polished aluminum 16-spoke
• Tires, LT275/65R20 all-terrain, blackwall
• Tire, spare LT275/70R18 all-terrain, blackwall
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door
• Wheelhouse liners, rear
• Bumper, front (Body-color.)
• Bumper, rear (Body-color.)
• Assist steps, chrome tubular, 6" rectangular (factory installed)
• CornerStep, rear bumper
• BedStep, Black integrated on forward portion of bed on driver and passenger side
• Moldings, beltline, stainless steel
• Cargo tie downs (12), fixed rated at 500 lbs per corner
• Grille (Chrome front grille bar with Gold bowtie. Includes Chrome grille inserts with Bronze accents.)
• Headlamps, LED reflector (high intensity) with LED signature curtain Daytime Running Lamps
• Taillamps, LED with signature
• Lamps, cargo area, cab mounted integrated with center high mount stop lamp, with switch in bank on left side of steering wheel.
• LED Cargo Area Lighting located in pickup bed, activated with switch on center switch bank or key fob
• Fog lamps, front, LED
• Mirrors, outside power-adjustable vertical trailering with heated and auto-dimming upper glass (driver and passenger) lower convex mirrors, turn signal indicators, puddle lamps, perimeter lighting, auxiliary lighting, power folding/extending (extends 3.31" [84.25mm])
• Mirror caps, chrome
• Glass, deep-tinted
• Chevytec spray-on bedliner Black with Chevrolet logo (does not include spray-on liner on tailgate due to Black composite inner panel) (Not available with any Ship Thrus EXCEPT (TCE), (TCH), (VSH) or (VTV).)
• Tailgate and bed rail protection cap, top
• Tailgate, gate function power up/down with power lock and release
• Door handles, chrome

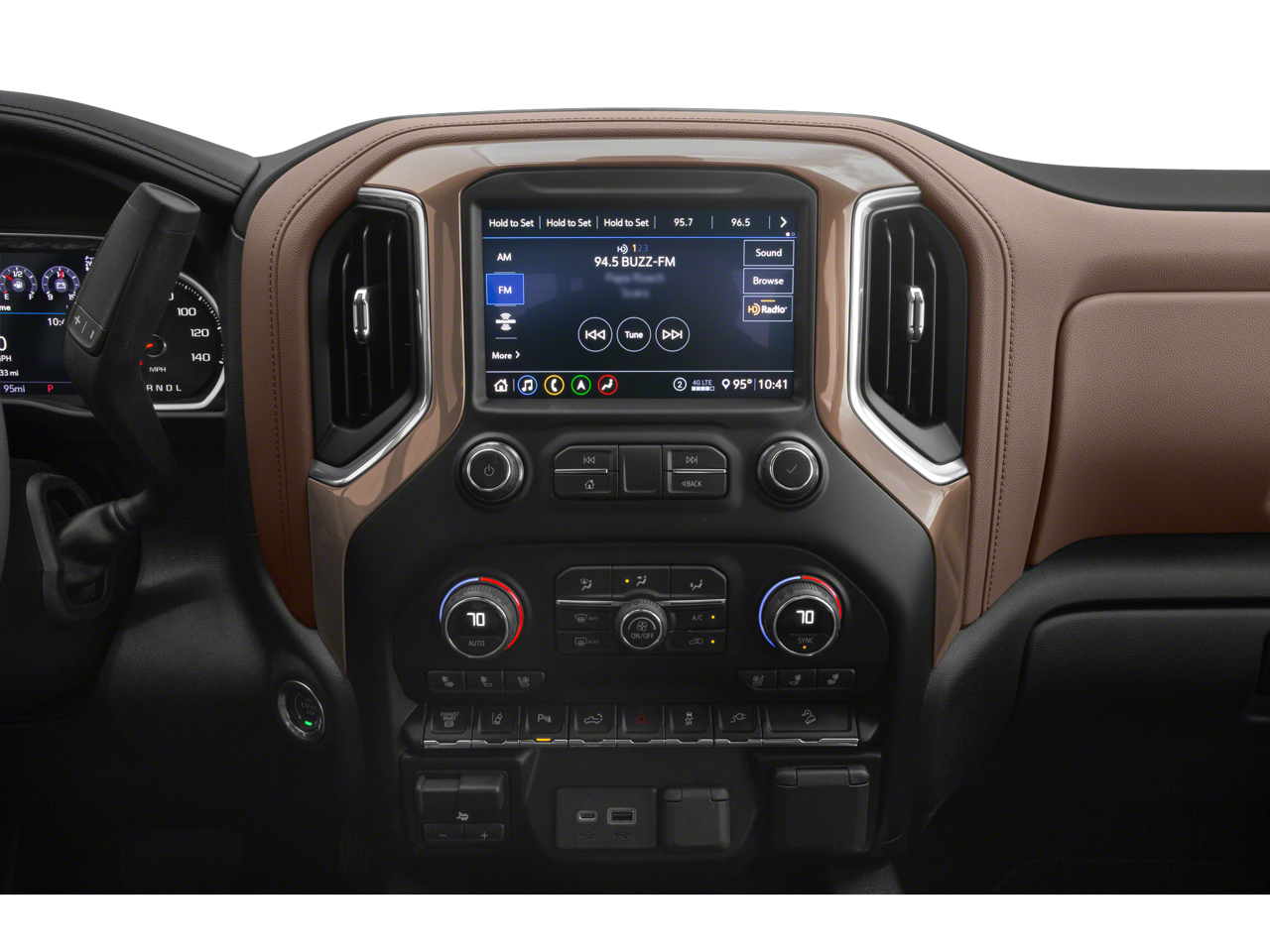

• Audio system, Chevrolet Infotainment 3 Premium system with connected Navigation 8" diagonal HD color touchscreen, AM/FM stereo, Bluetooth® audio streaming for 2 active devices, Apple CarPlay and Android Auto capable, enhanced voice recognition, additional memory for in-vehicle apps, cloud connected personalization for select infotainment and vehicle settings. Subscription required for enhanced and connected services after trial period. (Includes (PZ8) High Guidance with Hitch View.)
• SiriusXM Radio
• SiriusXM with 360L Equipped with SiriusXM with 360L. Enjoy a trial subscription of the All Access package for the full 360L experience, with a greater variety of SiriusXM content, a more personalized experience and easier navigation. With the All Access package, you can also enjoy your favorites everywhere you go, with the SiriusXM app, online and at home on compatible connected devices. (IMPORTANT: The SiriusXM radio trial package is not provided on vehicles that are ordered for Fleet Daily Rental ("FDR") use. If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates. Fees and taxes apply. See the SiriusXM Customer Agreement at www.siriusxm.com for complete terms and how to cancel. All fees, content, features, and availability are subject to change. GM connected vehicle services vary by vehicle model and require active service plan, working electrical system, cell reception and GPS signal. See onstar.com for details and limitations.)
• Radio, HD
• Bose Sound System, premium 7-speaker system with Richbass woofer
• Steering wheel audio controls
• Bluetooth® for phone connectivity to vehicle infotainment system
• 4G LTE Wi-Fi Hotspot capable (Terms and limitations apply. See onstar.com or dealer for details.)

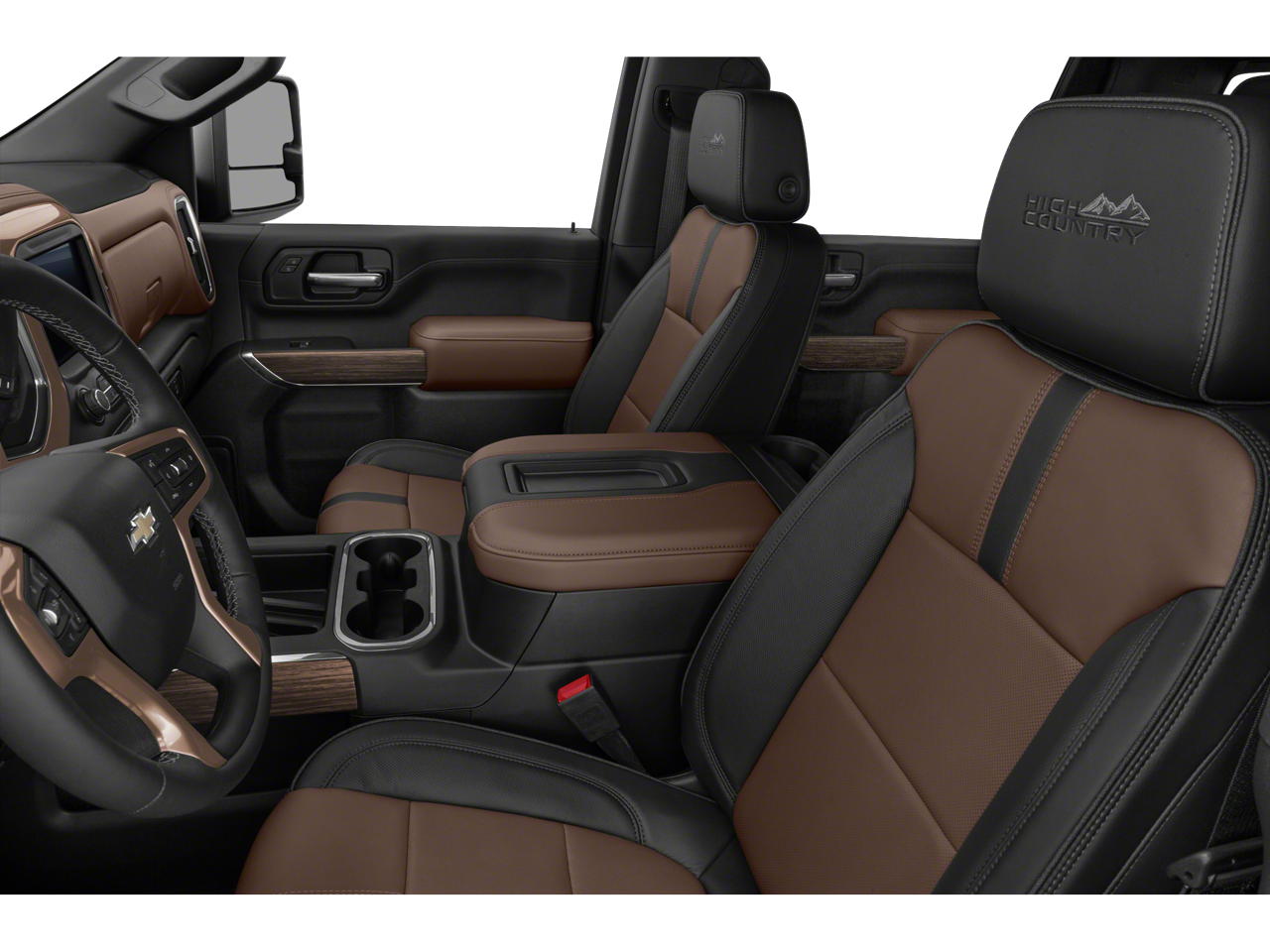

• Seats, front bucket with center console, for Crew Cab and Double Cab models
• Perforated leather-appointed front seat trim
• Seating, heated driver and front outboard passenger
• Seats, ventilated driver and front passenger
• Seat adjuster, driver 10-way power including lumbar
• Seat adjuster, passenger 10-way power including lumbar
• Driver memory recalls driver "presets" for power driver seat and outside mirrors
• Seats, heated second row outboard seats

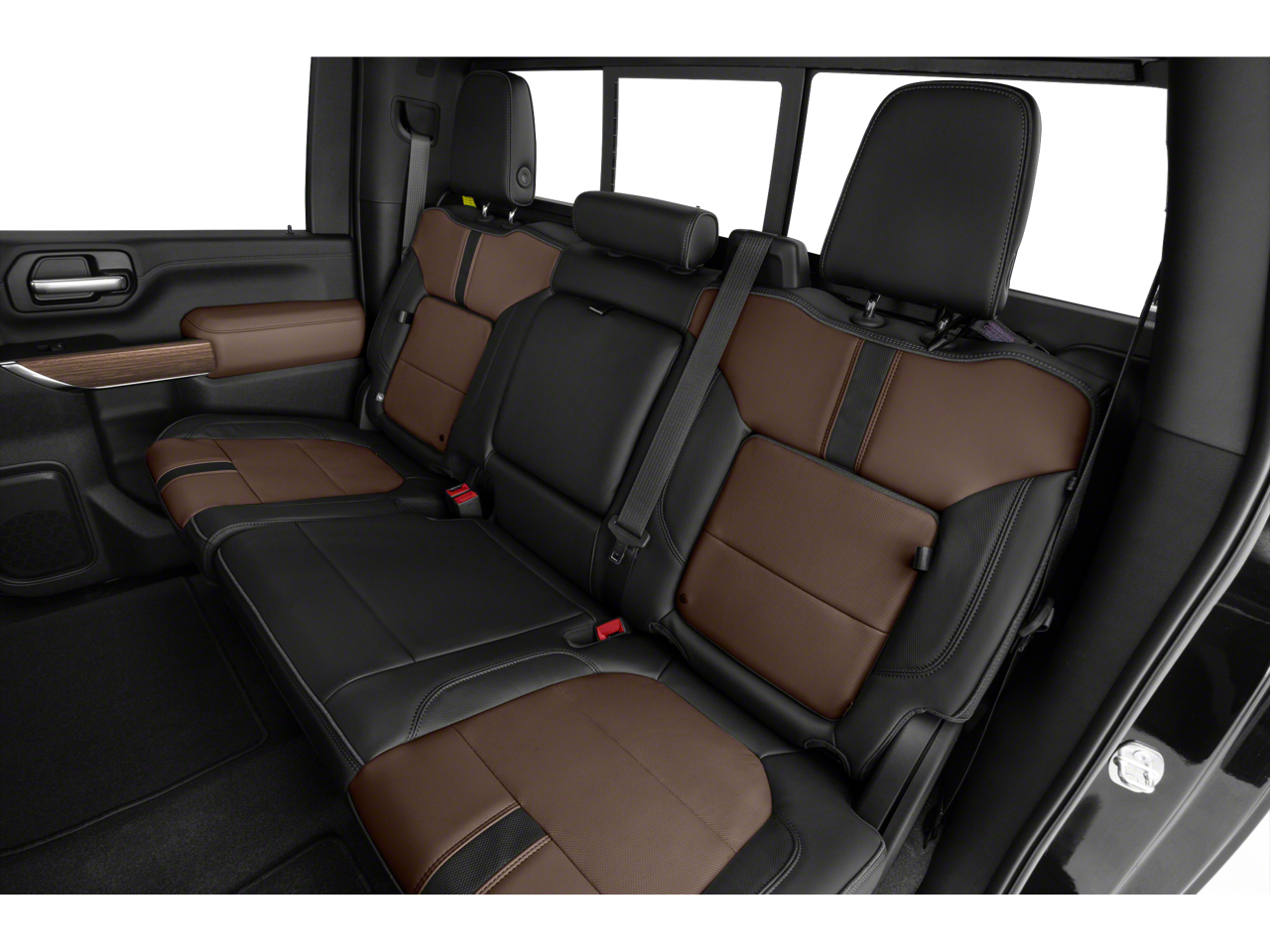

• Seat, Up-level Rear with Storage Package 60/40 folding bench for Crew Cab models, includes full-length bench seat, seatback storage on left and right side, center fold out armrest with 2 cupholders, full cab width under-seat storage, (includes child seat top tether anchor) (Rear seat is leather-appointed)

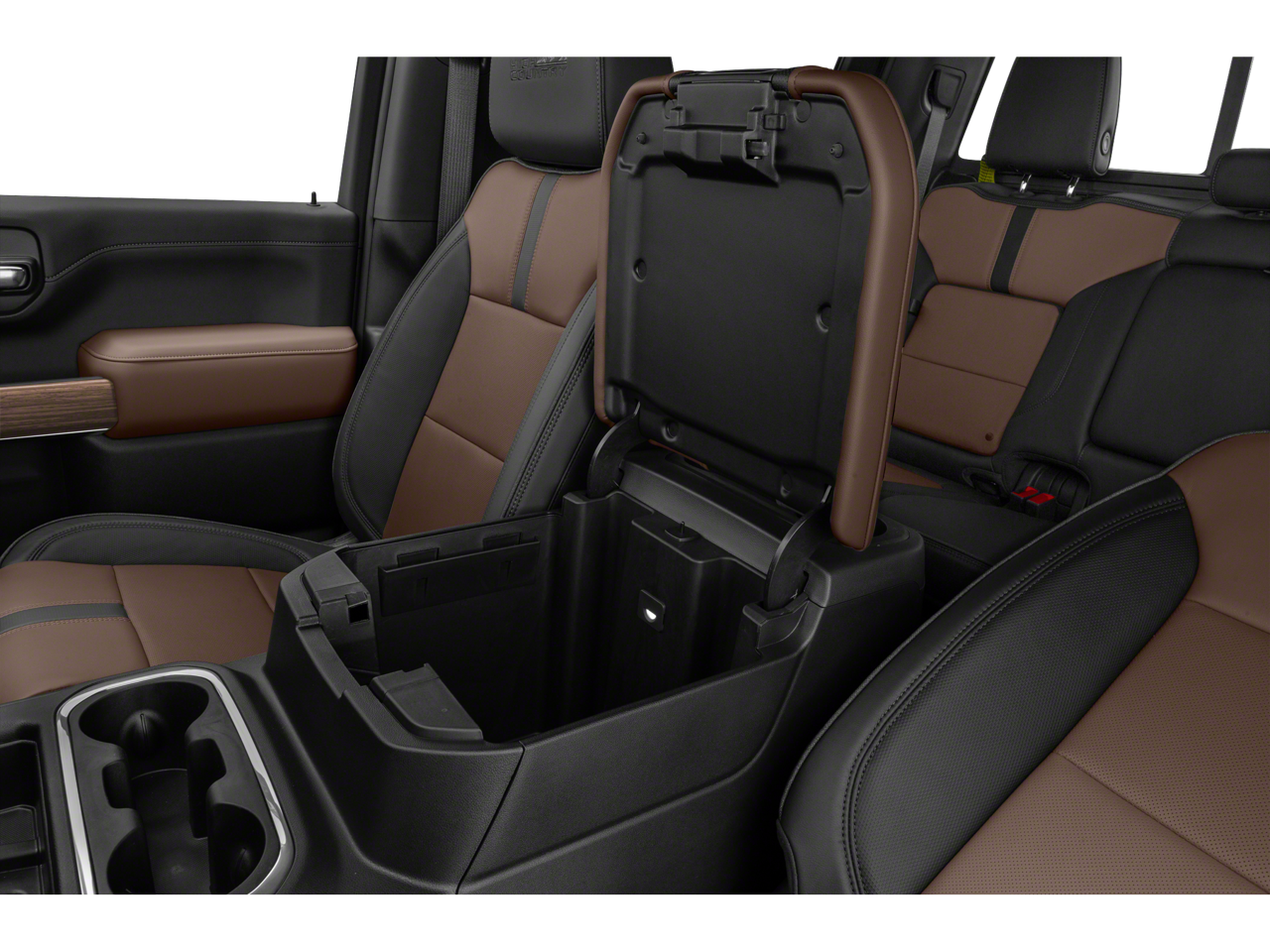

• Center Console, floor-mounted with cup holders, cell phone storage, power cord management, hanging file folder capability
• Floor covering, color-keyed carpeting
• Floor mats, carpeted front (Deleted when LPO floor liners are ordered.)
• Floor mats, carpeted rear (Deleted when LPO floor liners are ordered.)
• Steering wheel, leather-wrapped
• Steering wheel, heated
• Steering column, manual tilt and telescoping
• Steering column, lock control, electrical

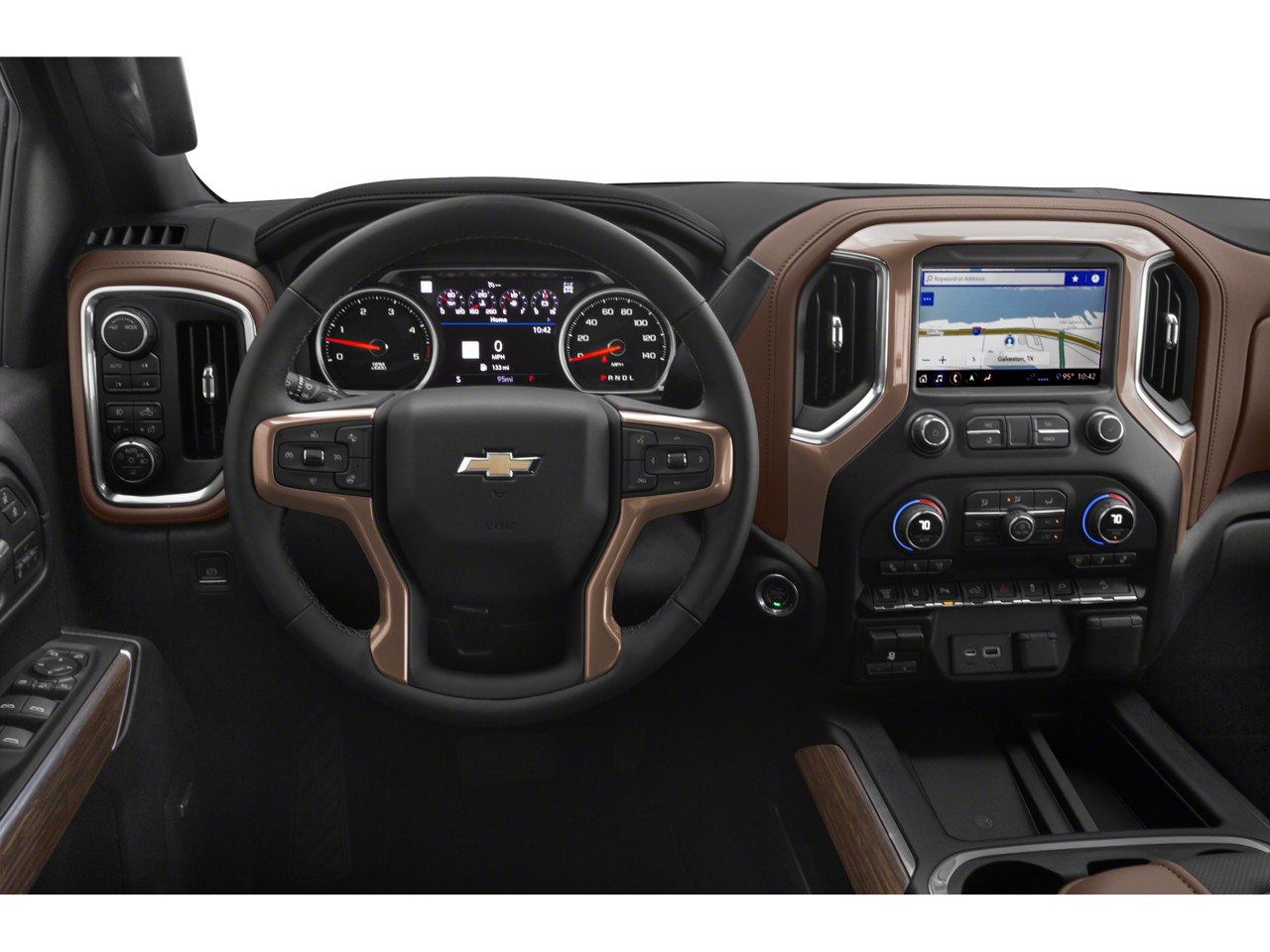

• Driver Information Center, enhanced, 8" diagonal multi-color digital display includes analog speedometer and tachometer gauges
• Exterior Temperature Display located in radio display
• Compass located in instrument cluster
• Rear Seat Reminder
• Window, power front, drivers express up/down
• Window, power front, passenger express up/down
• Windows, power rear, express down
• Window, power, rear sliding with rear defogger
• Door locks, power
• Remote vehicle starter system
• Keyless Open and Start
• Universal Home Remote
• Cruise control, electronic with set and resume speed, steering wheel-mounted
• Theft-deterrent system, unauthorized entry
• Wireless Charging (Not compatible with all phones. Compliant batteries include QI and PMA technologies. Reference Mobile devices manual to confirm what type of battery it uses.)
• USB ports, 2 (first row) located on instrument panel
• USB Ports (Inside Console with bucket seats), 2 also includes 1 SD card reader and auxiliary jack
• USB ports, dual, charge-only (2nd row)
• Power outlet, front auxiliary, 12-volt
• Power outlet, rear auxiliary, 12-volt
• Power outlet, instrument panel, 120-volt (400 watts shared with (KC9) bed mounted power outlet)
• Power outlet, bed mounted, 120-volt (400 watts shared with (KI4) instrument panel mounted power outlet)
• Air conditioning, dual-zone automatic climate control
• Air vents, rear, heating/cooling
• Defogger, rear-window electric
• Mirror, inside rearview auto-dimming
• Assist handles front A-pillar mounted for driver and passenger, rear B-pillar mounted
• Chevrolet Connected Access capable (Subject to terms. See onstar.com or dealer for details.)

• StabiliTrak stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Airbags, Dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar and Chevrolet connected services capable (Terms and limitations apply. See onstar.com or dealer for details.)
• Front and Rear Park Assist, ultrasonic
• HD Rear Vision Camera
• Hitch Guidance
• Hitch Guidance with Hitch View
• Rear Cross Traffic Alert
• Lane Change Alert with Side Blind Zone Alert
• Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitoring System with Tire Fill Alert (does not apply to spare tire)

• Trailering Information Label provides max trailer ratings for tongue weight, conventional, gooseneck and 5th wheel trailering

LPO, DARK ESSENTIALS PACKAGE

• includes (RIK) Black Silverado nameplates
• along with where applicable
• Black Custom/LT/LTZ badges
• LPO
• (SFZ) Black bowtie
• LPO and (SB7) Black tailgate CHEVROLET lettering
• LPO

Z71 OFF-ROAD PACKAGE

• includes (Z71) Off-Road suspension with off-road tuned twin tube Rancho shocks
• (JHD) Hill Descent Control and (NZZ) skid plates (transfer case and oil pan)

TECHNOLOGY PACKAGE

• includes (UVS) HD Surround Vision with Two Trailer View Camera Provisions
• (DRZ) Rear Camera Mirror
• (UV6) 15" Diagonal Head-Up Display and (UVN) Bed View Camera

HIGH COUNTRY DELUXE

• includes (PDJ) Safety Package II
• (CWM) Technology Package and (CMT) Gooseneck/5th Wheel Package

HIGH COUNTRY PREFERRED EQUIPMENT GROUP

• includes standard equipment

BED VIEW CAMERA

• camera in the CHMSL to show a view of the cargo bed
• includes Two Trailer Camera Provisions

TRAILER TIRE PRESSURE MONITOR SENSORS

• includes set of 4 sensors. Sensor functionality requires (U1D) In-vehicle Trailering App to be ordered with the vehicle and installed by the factory. Sensors will be shipped loose with the truck and will need to be installed on trailer by customer. System is capable of monitoring up to 6 wheels. Additional or replacement sensors are available through GM Accessories

• Dark Essentials Package: Black Name Plates; Front Black Bowtie Emblem; Black Tailgate CHEVROLET Lettering
• Z71 Off-Road Package
• Safety Package II: Forward Collision Alert; Following Distance Indicator; Automatic Emergency Braking; Safety Alert Seat; IntelliBeam Automatic High Beam On/off; Lane Departure Warning
• Technology Package: HD Surround Vision with 2 Trailer View Camera Provisions; 15" Diagonal Multicolor Head-Up Display; Bed View Camera; Rear Camera Mirror
• High Country Deluxe
• Preferred Equipment Group 3LZ: Driver Memory; Perforated Leather-Appointed Seat Trim; SiriusXM with 360L; Power Sliding Rear Window with Defogger; Ultrasonic Front and Rear Park Assist; Electric Rear-Window Defogger; Unauthorized Entry Theft-Deterrent System; Heated Steering Wheel; 120-Volt Instrument Panel Power Outlet; Heated Driver and Front Outboard Passenger Seating; Wireless Charging; Front Bucket Seats with Center Console; Color-Keyed Carpeting Floor Covering; OnStar and Chevrolet Connected Services Capable; 8" Diagonal Multicolor Digital Display DIC; Heated 2nd Row Outboard Seats; Power Front Windows with Passenger Express Up/down; Front Carpeted Floor Mats; Rear Carpeted Floor Mats; Chrome Mirror Caps; Power Rear Windows with Express Down; Integrated Trailer Brake Controller; Ventilated Driver and Front Passenger Seats; Leather-Wrapped Steering Wheel; Manual Tilt and Telescoping Steering Column; Auto-Dimming Inside Rearview Mirror; HD Rear Vision Camera; LED Cargo Area Lighting; Bluetooth® For Phone; Remote Vehicle Starter System; Advanced Trailering System; Floor-Mounted Center Console; 170 Amp Alternator; Electrical Lock Control Steering Column; Up-Level Rear Seat with Storage Package; Rear Cross Traffic Alert; Front LED Fog Lamps; Steering Wheel Audio Controls; Chevrolet Connected Access Capable; Universal Home Remote; 120-Volt Bed Mounted Power Outlet; Deep-Tinted Glass; 10-Way Power Driver Seat Adjuster with Lumbar; Black Chevytec Spray-On Bedliner with Chevrolet Logo; Lane Change Alert with Side Blind Zone Alert; Heated and Auto-Dimming Power Vertical Trailering Mirrors; Electronic Cruise Control with Set and Resume Speed; HD Radio; Chrome Front Grille; Hitch Guidance with Hitch View; Power Front Windows with Driver Express Up/down; Compass; Dual Charge-Only USB Ports (2nd Row); Keyless Open and Start; 4G LTE Wi-Fi Hotspot Capable; 10-Way Power Passenger Seat Adjuster with Lumbar; Rear Wheelhouse Liners; 6" Rectangular Chromed Tubular Assist Steps; 12-Volt Rear Auxiliary Power Outlet; Polished Exhaust Tip; Power Door Locks; Chrome Recovery Hooks
• Gooseneck/5th Wheel Package: Gooseneck/5th Wheel Prep Package; Bed View Camera
• Power Sunroof
• Iridescent Pearl Tricoat
• Bed View Camera
• High Idle Switch
• Front Black Bowtie Emblem
• LED Smoked Amber Roof Marker Lamps
• Trailer Tire Pressure Monitor Sensors
• Apple CarPlay/Android Auto smart device mirroring
• 4G LTE Wi-Fi Hotspot capable mobile hotspot internet access
• Head-up display
• Brake assist system
• Cruise control with steering wheel mounted controls
• Power open and close tailgate
• Ventilated driver and front passenger seats

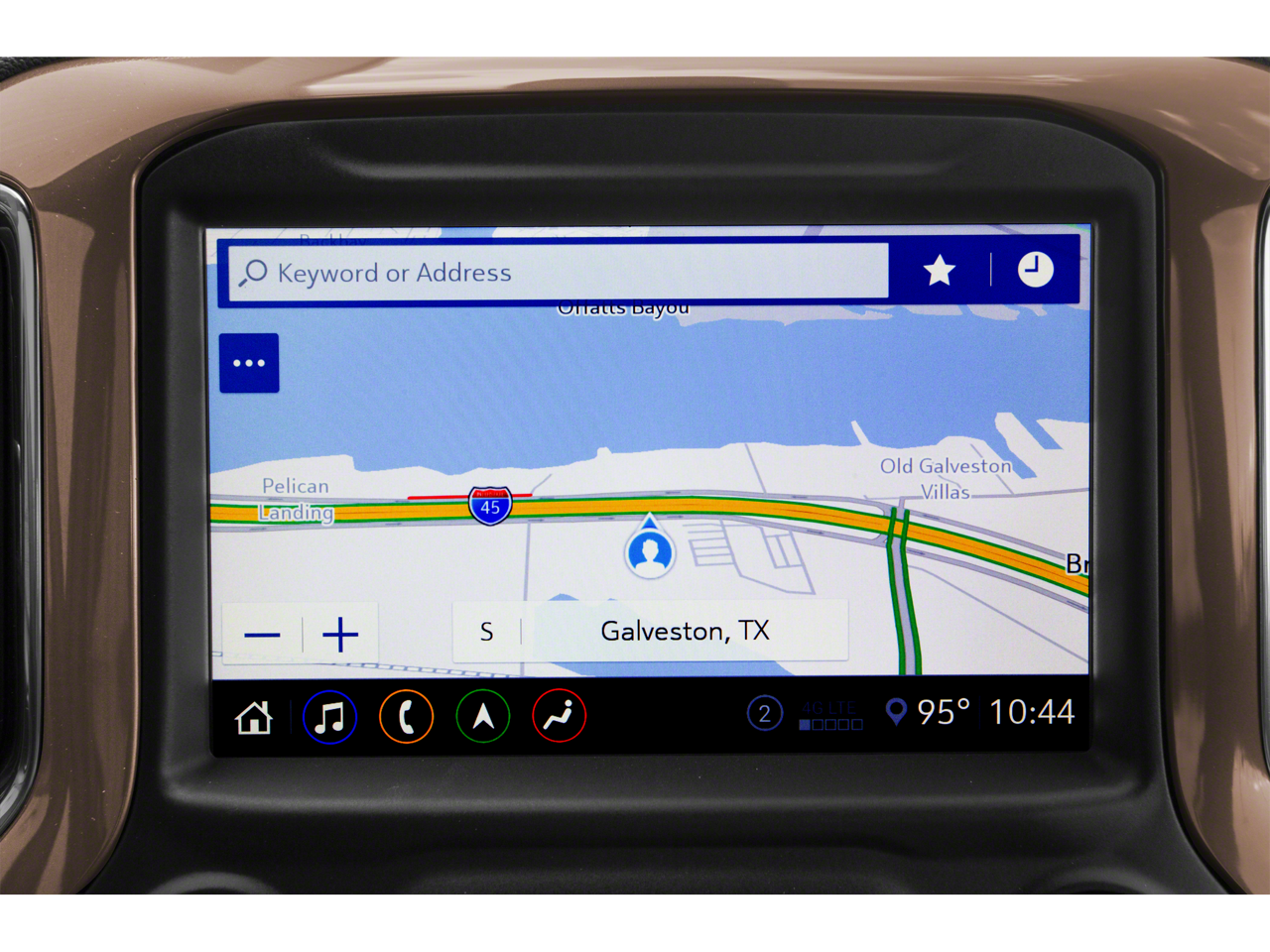

• Integrated navigation system
• Keyfob remote start
• Heated steering wheel
• Heated driver and front passenger seats
• Heated rear seats
• Leather front seat upholstery
• Primary monitor touchscreen
• Lane Departure Warning
• Rear Cross Traffic Alert collision warning
• First-row sliding and tilting glass sunroof with express open/close activation sunshade
• Driver seat power reclining
• lumbar support
• cushion tilt
• fore/aft control and height adjustable control
• Autotrac part and full-time 4WD

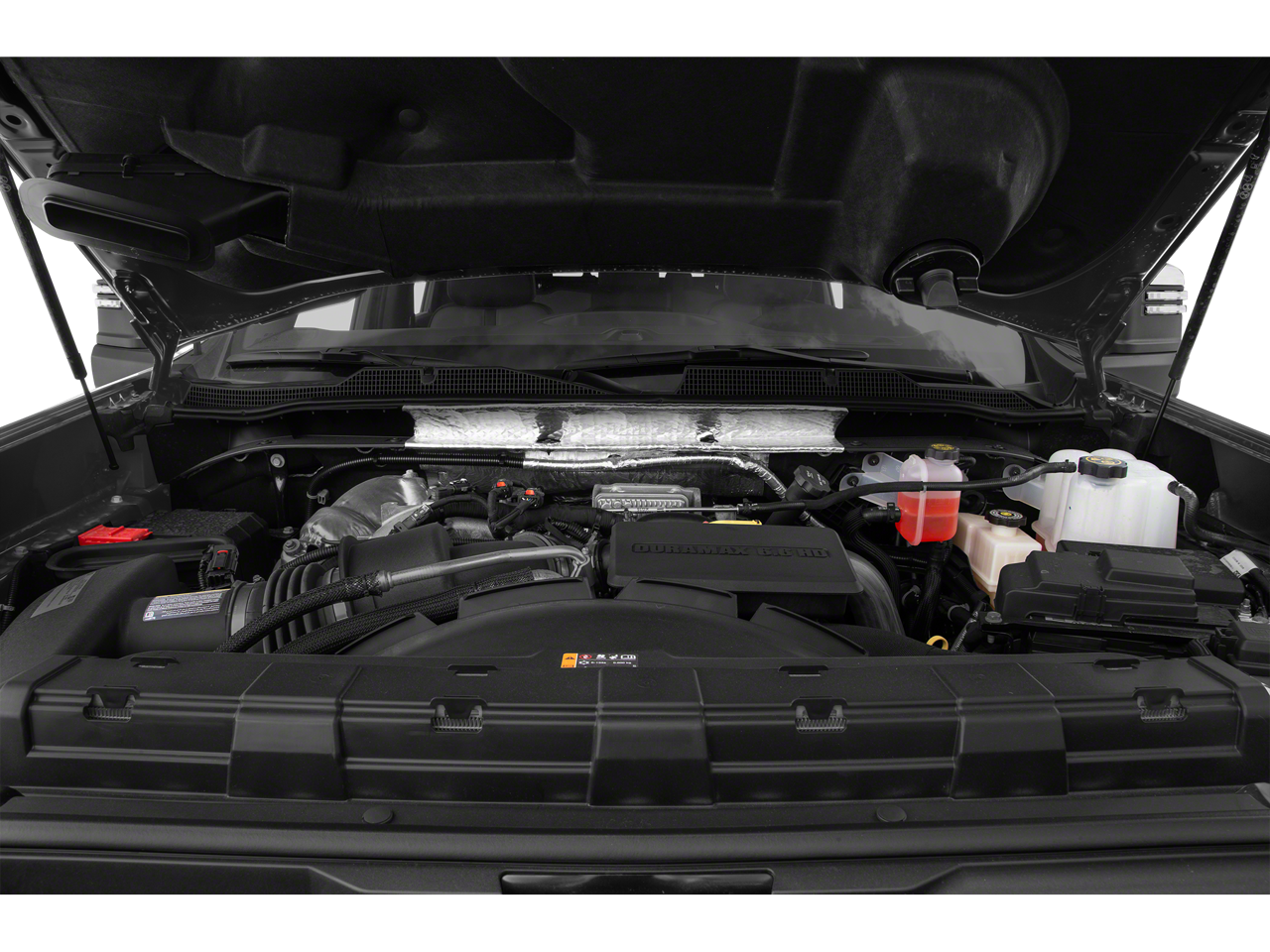

• Duramax 6.6L V-8 diesel direct injection
• intercooled turbo
• diesel
• engine with 445HP
• Duramax 6.6L V-8
• Front wireless smart device charging
• Teen Driver restricted driving mode/alerts
• Auxiliary camera
• Keyless Open/Keyless Start with hands-free access and push button start
• Push-button
• Video-feed rearview mirror
• Bluetooth® wireless audio streaming
• Hitch Guidance vehicle to trailer hitching assist
• Front mounted camera
• Right side camera
• Pickup box camera
• Left side camera
• Lane Change Alert with Side Blind Zone Alert blind spot warning
• Following distance alert
• Trailer tire pressure and temperature sensors
• Trailer light test
• Trailer light malfunction warning
• Trailer theft alarm
• Dual-zone front climate control
• IntelliBeam auto high-beam headlights
• Immobilizer
• Richbass speakers
• Bluetooth® handsfree wireless device connectivity
• Trailer brake controller
• Trailer sway control
• Trailering Assist Guidelines vehicle and trailer reverse assist with visual graphic guidance only
• Chevrolet Infotainment 3 Premium external memory control
• Internet radio capability
• 6 USB ports

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 170
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 6600
• Curb Weight - Front (lbs): 3849
• Curb Weight - Rear (lbs): 2784
• Gross Vehicle Weight Rating Cap (lbs): 10650
• Gross Combined Wt Rating (lbs): 24000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 14500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1450
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 16650
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4162
• Maximum Trailering Capacity (lbs): 18500
• Suspension
• Suspension Type - Front: Short/Long Arm
• Suspension Type - Rear: Multi-Leaf Springs
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 51.0
• Shock Absorber Diameter - Rear (mm): 51.0
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.0 x 1.6
• Rear Brake Rotor Diam x Thickness (in): 14.1 x 1.3
• Tires
• Front Tire Order Code: QF9
• Rear Tire Order Code: QF9
• Spare Tire Order Code: ZYG
• Front Tire Size: LT275/65R20
• Rear Tire Size: LT275/65R20
• Spare Tire Size: LT275/70R18
• Front Tire Capacity (lbs): 3020
• Rear Tire Capacity (lbs): 3373
• Spare Tire Capacity (lbs): 3638
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 20 x 8.5
• Rear Wheel Size (in): 20 x 8.5
• Spare Wheel Size (in): 18 x 8.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 52.7
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 158.94
• Length, Overall (in): 249.95
• Width, Max w/o mirrors (in): 81.85
• Height, Overall (in): 79.82
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): 42.1
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 10.12
• Ground Clearance, Rear (in): 10.12
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 82.25
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 71.4
• Cargo Box Width @ Wheelhousings (in): 51.85
• Cargo Box (Area) Height (in): 21
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 69.5
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 43.03
• Front Leg Room (in): 44.53
• Front Shoulder Room (in): 66.02
• Front Hip Room (in): 61.18
• Second Head Room (in): 40.12
• Second Leg Room (in): 43.4
• Second Shoulder Room (in): 65.3
• Second Hip Room (in): 60.24
• Summary
• Vehicle Name: Chevrolet Silverado 2500HD
• Body Style: Crew Cab Pickup
• Body Code: E63
